CONVERTER-M

CONVERTER-M is a multi-mode power converter capable of simultaneously outputting several common voltages (5V, 12V, 19V) and providing a variety of standard interfaces. Supporting switching between manual/automatic startup modes, it is ideal for pairing with other devices in early-stage project development and can be easily installed on standard brackets.
CONVERTER-M
  • CONVERTER-M
  • CONVERTER-M
  • CONVERTER-M
  • CONVERTER-M
  • CONVERTER-M

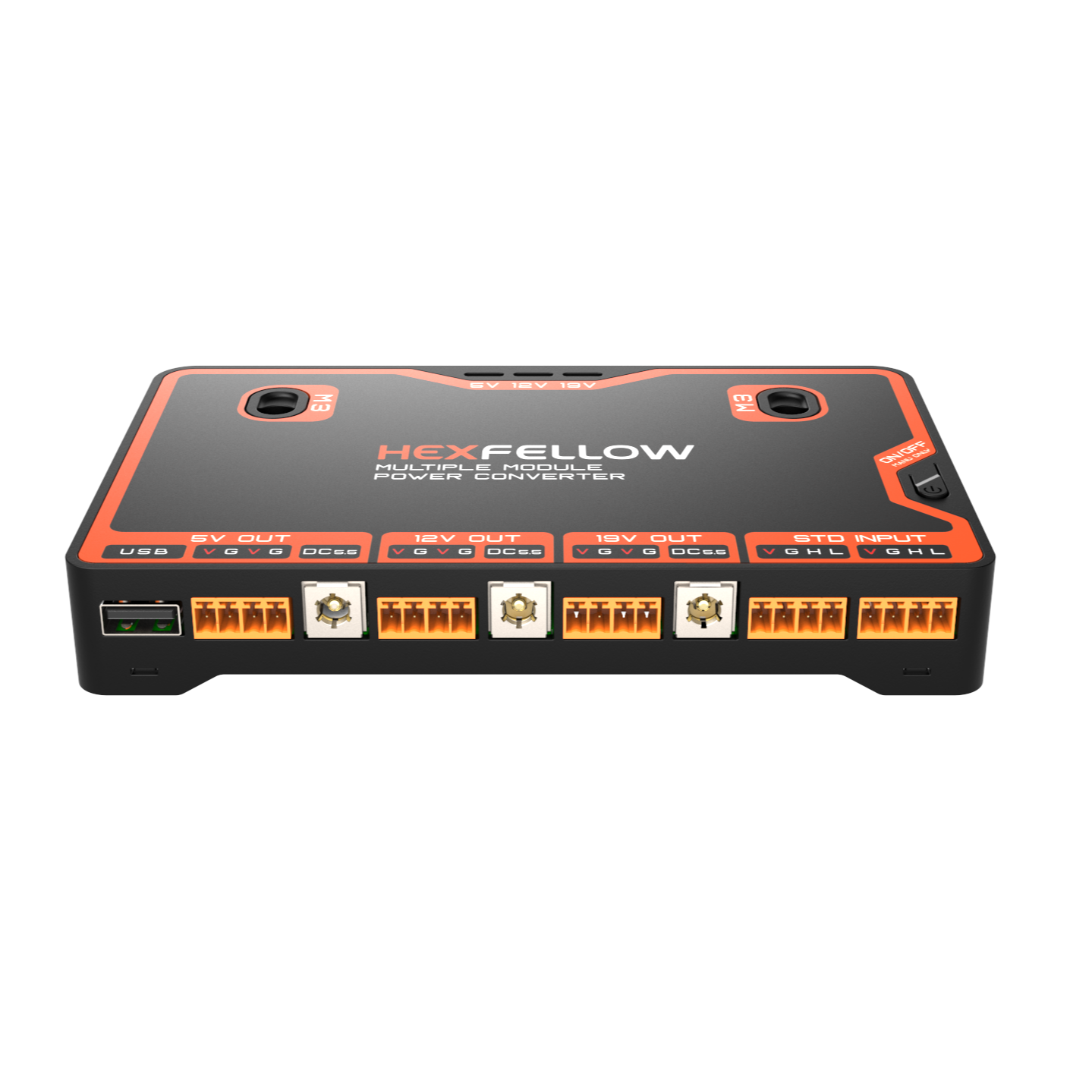

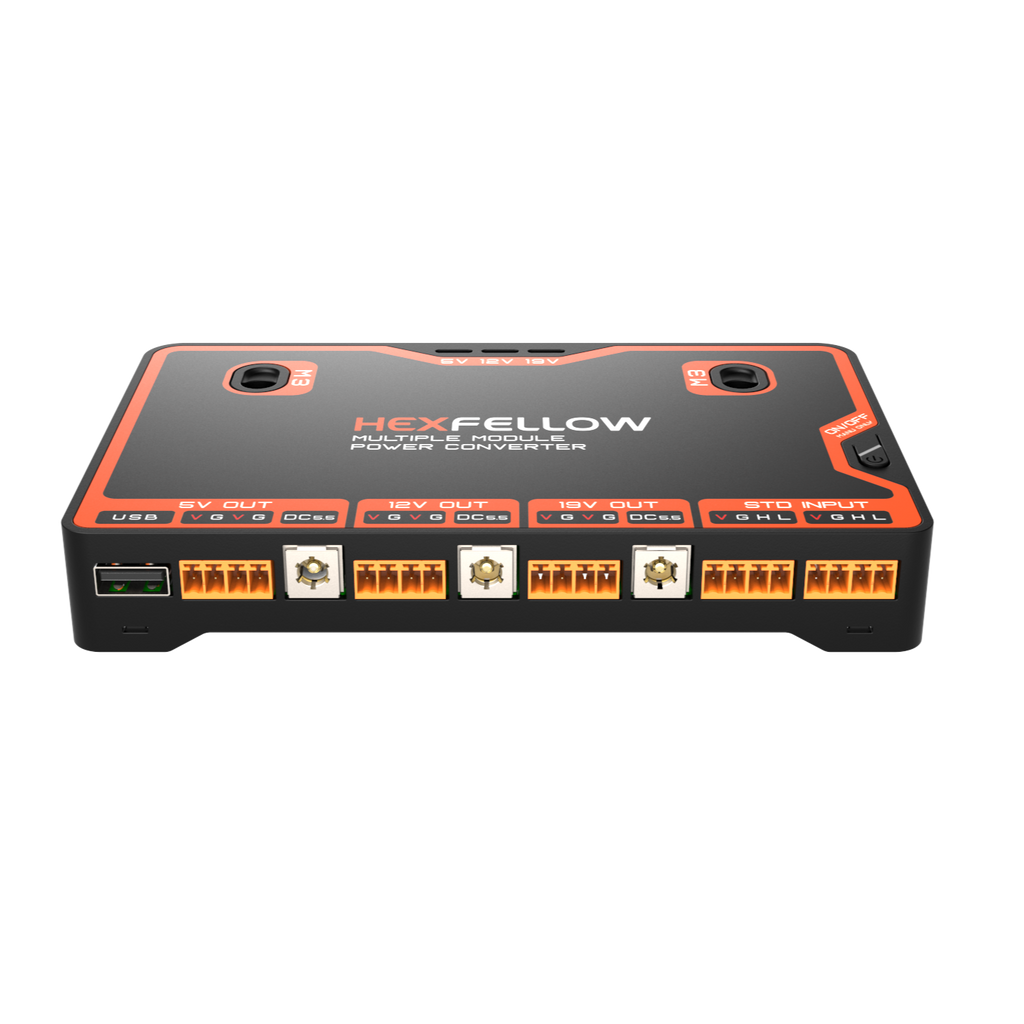

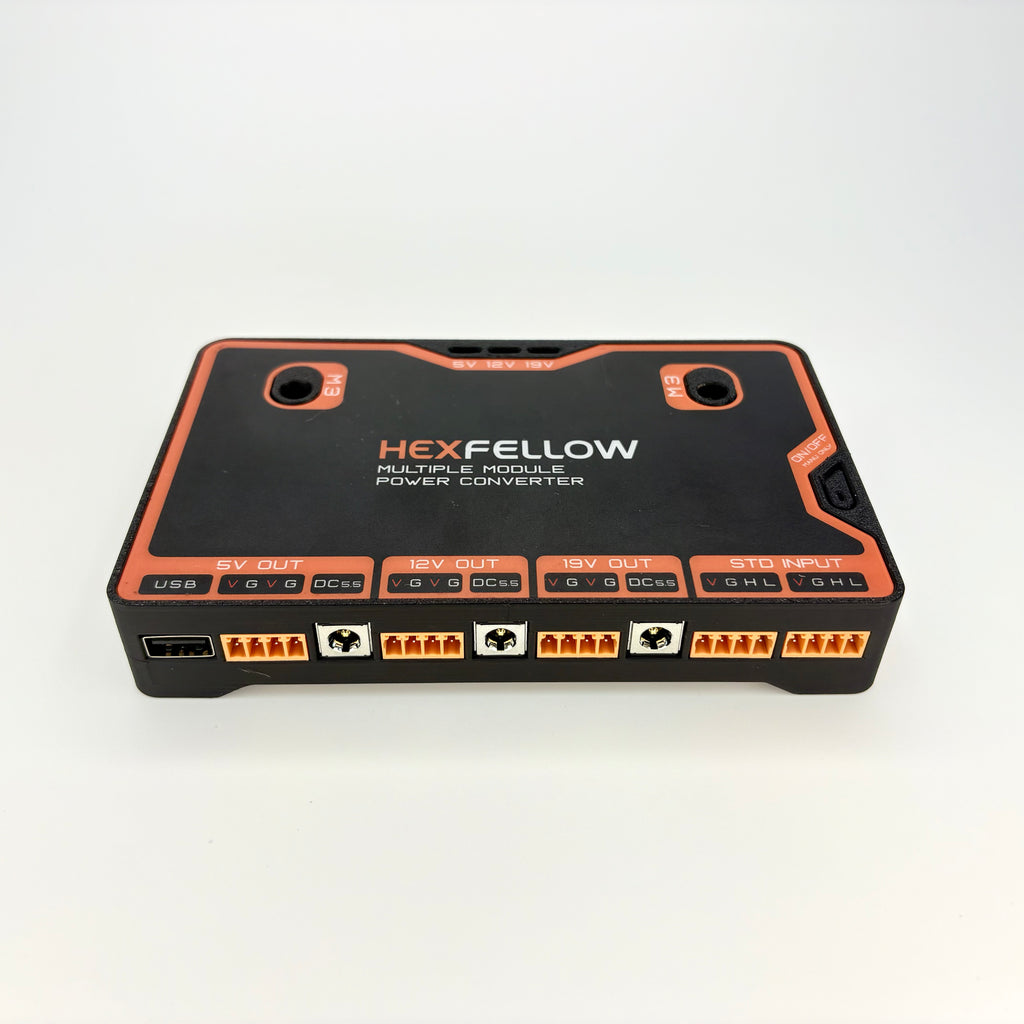

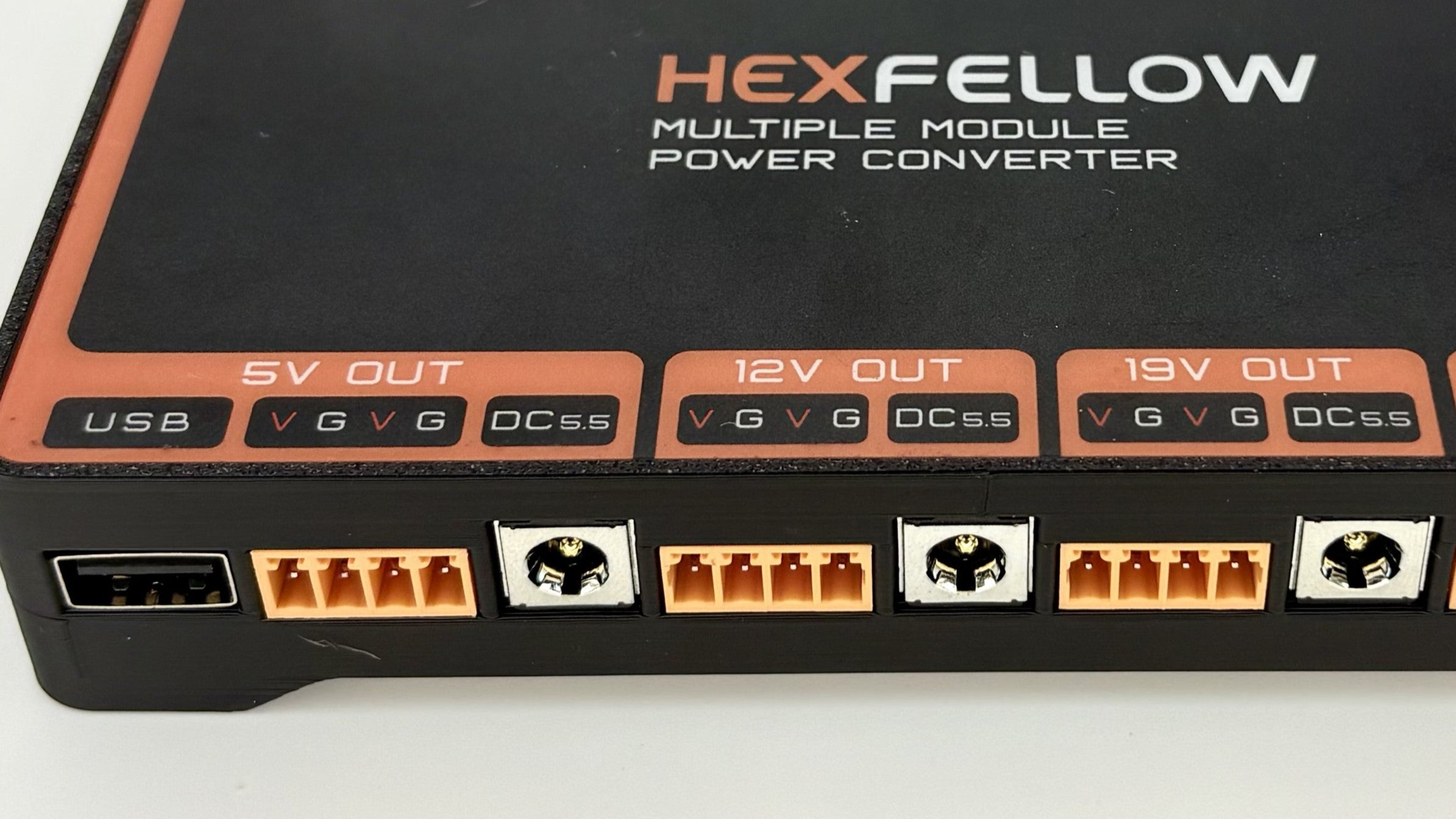

MULTIPLE OUTPUT PORTS
It also supports multiple voltage outputs and various common interfaces, including DC5.5, USB, and quick-connect terminals.

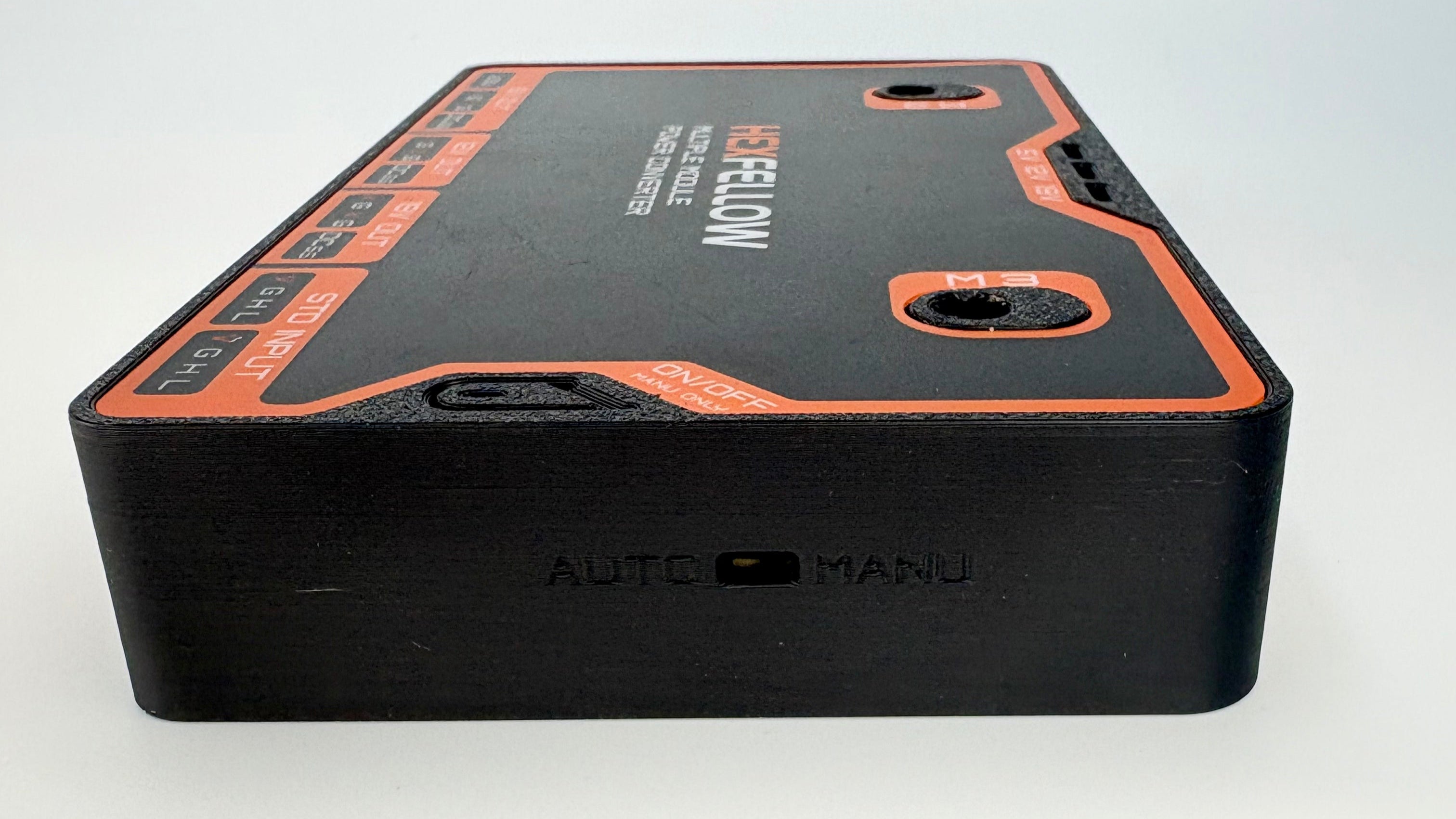

MANUAL/AUTO MODE
In manual mode, the external power supply can be controlled via a manual switch after power-on.

HIGH-CURRENT

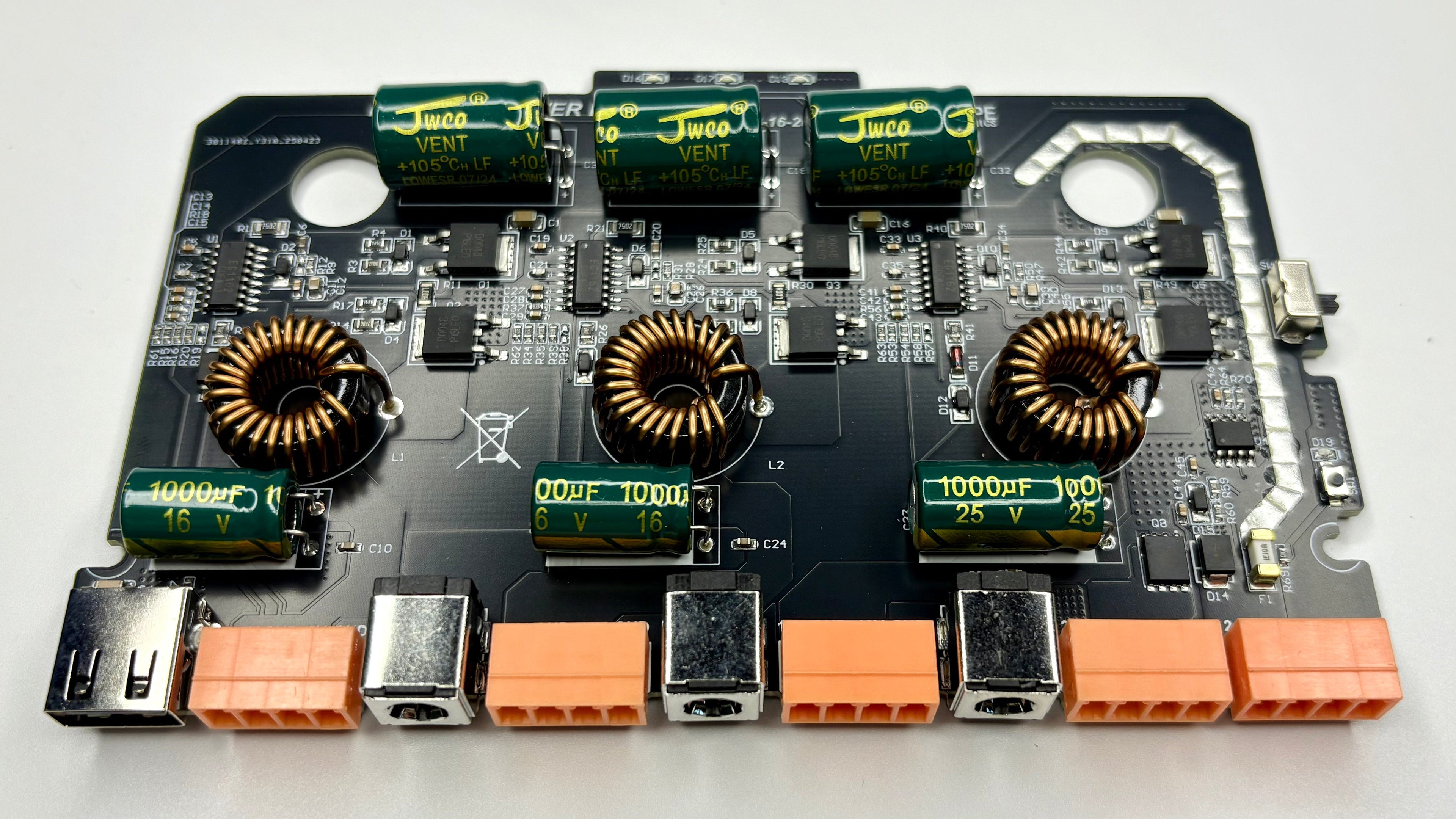

Featuring a modular buck design with a maximum current of 10A per channel, it covers the majority of application scenarios.

Parameter

Model

Maximum Input Voltage

Maximum Total Output Power

Rated Output Voltage

Multi-mode DC Buck

60V

Total 240 W

5V +12V +19V

Rated Output Current

Input Interface

Output Interface

Operating Temperature

Single Channel 10A

2EDGK3.5

USB + DC5.5 + 2EDGK3.5

0°C~60°C
