CONVERTER-MS

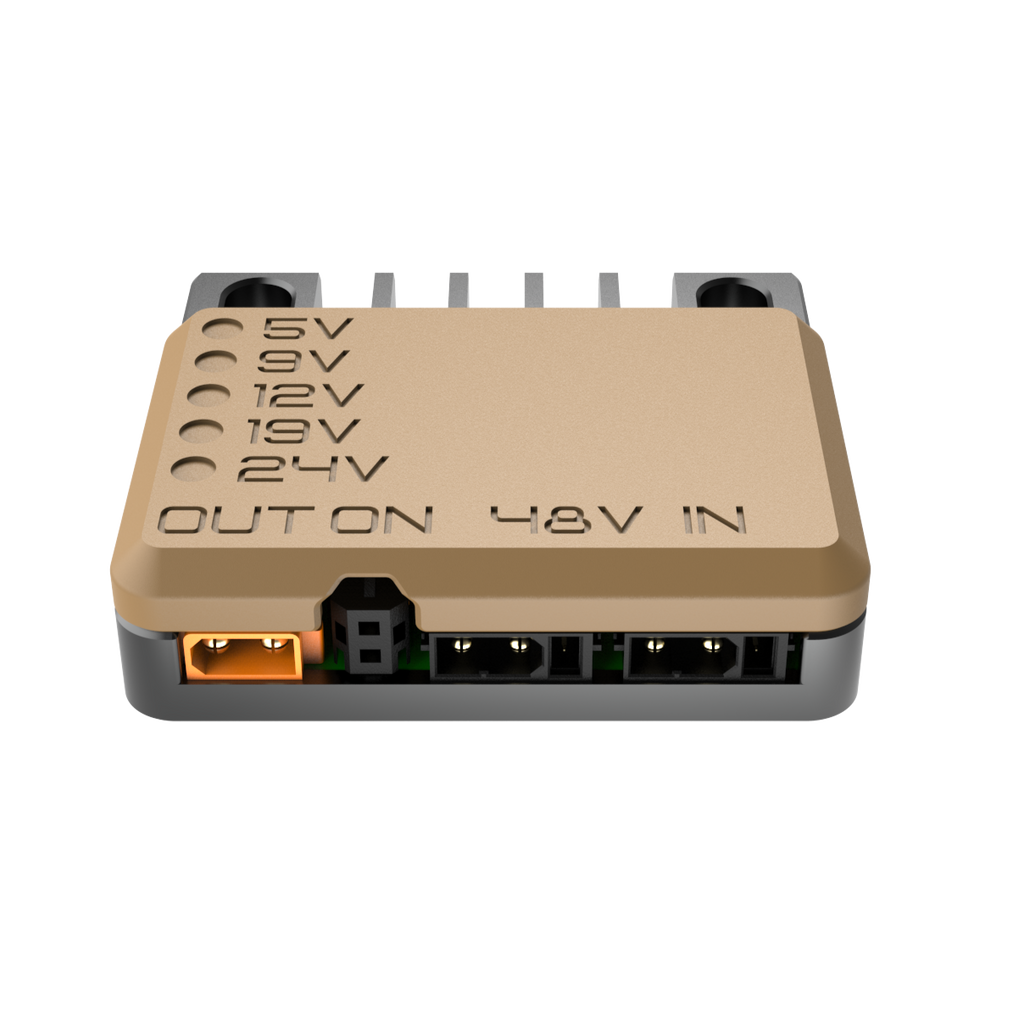

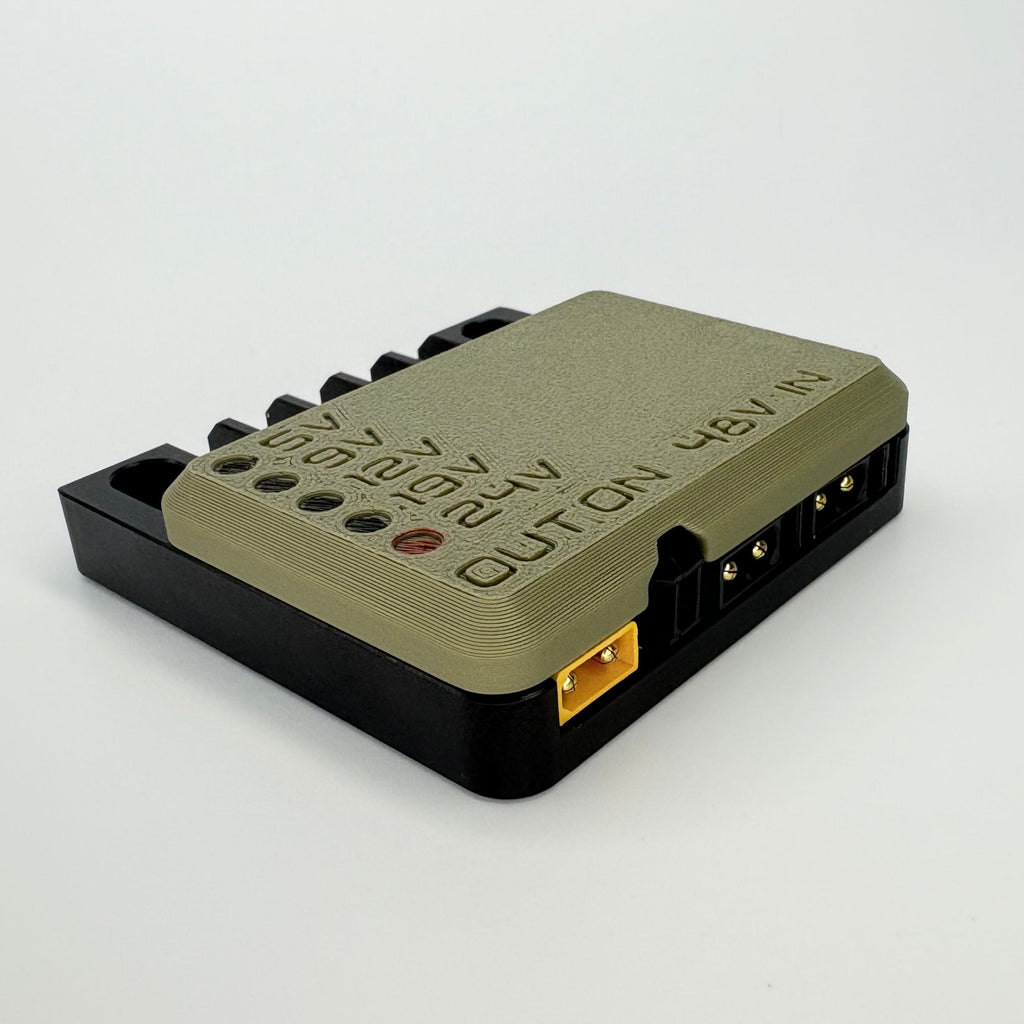

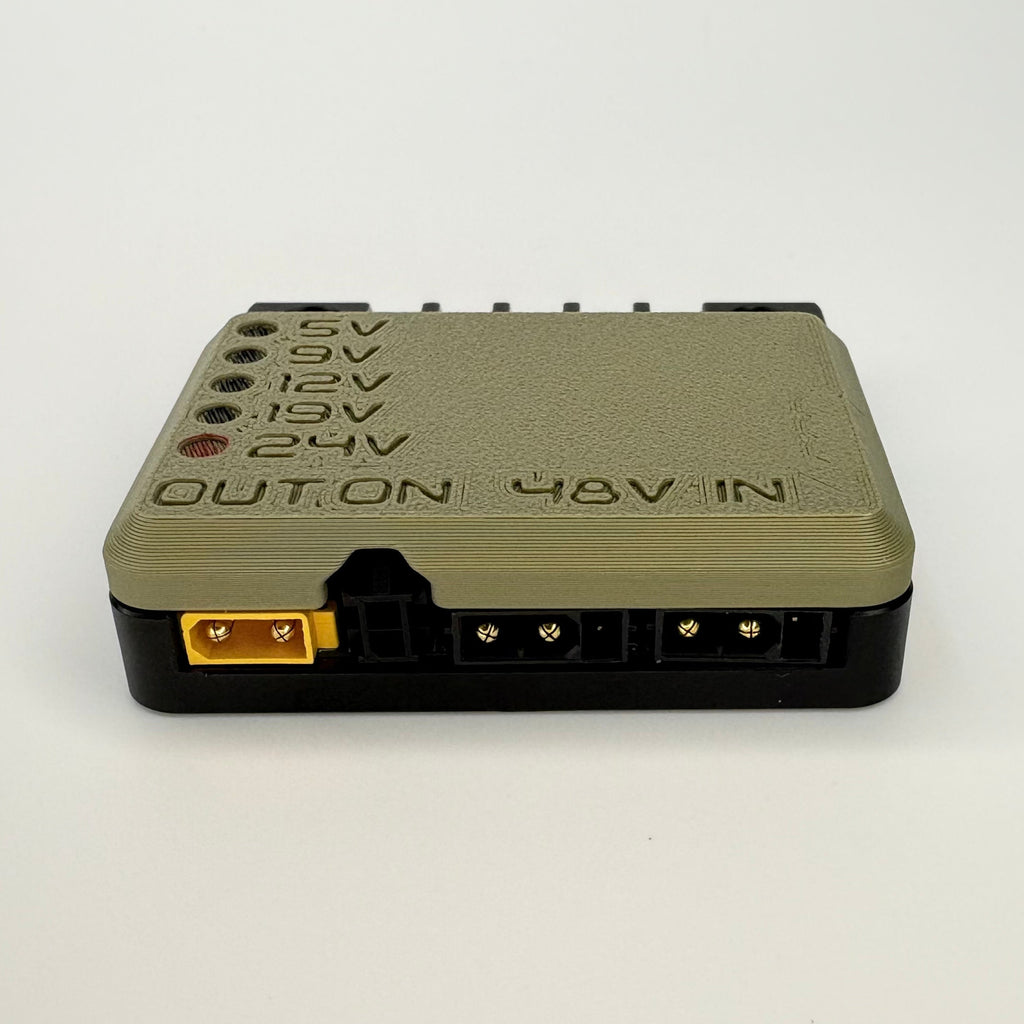

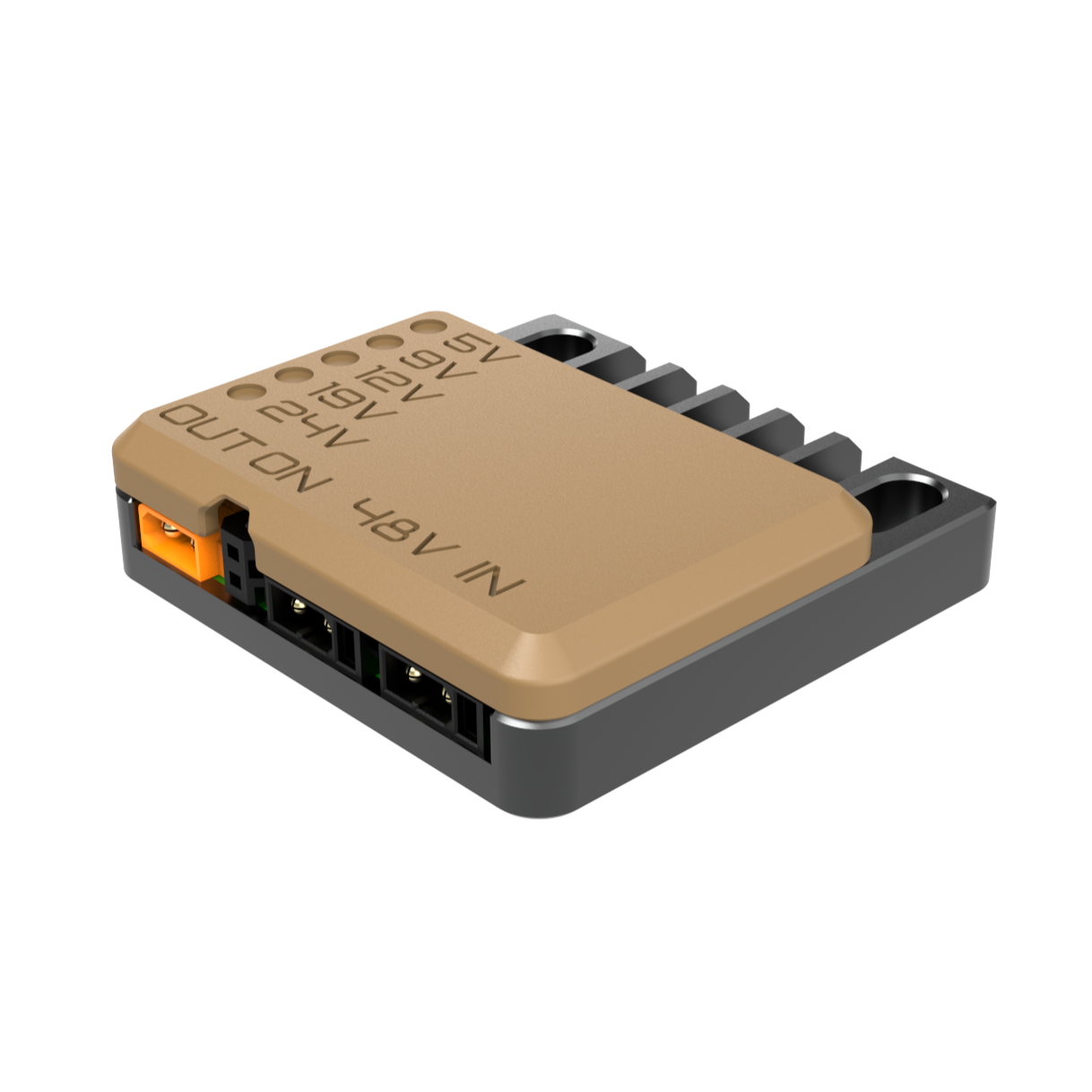

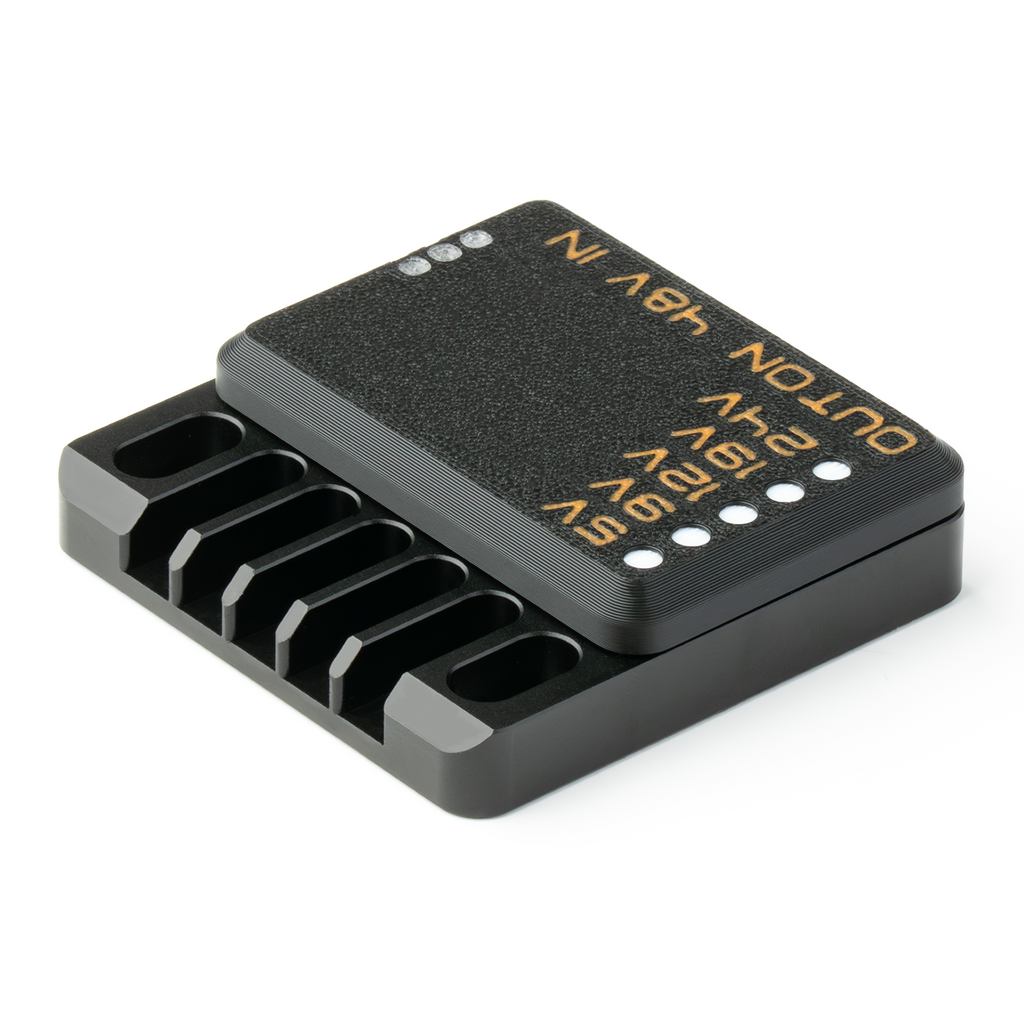

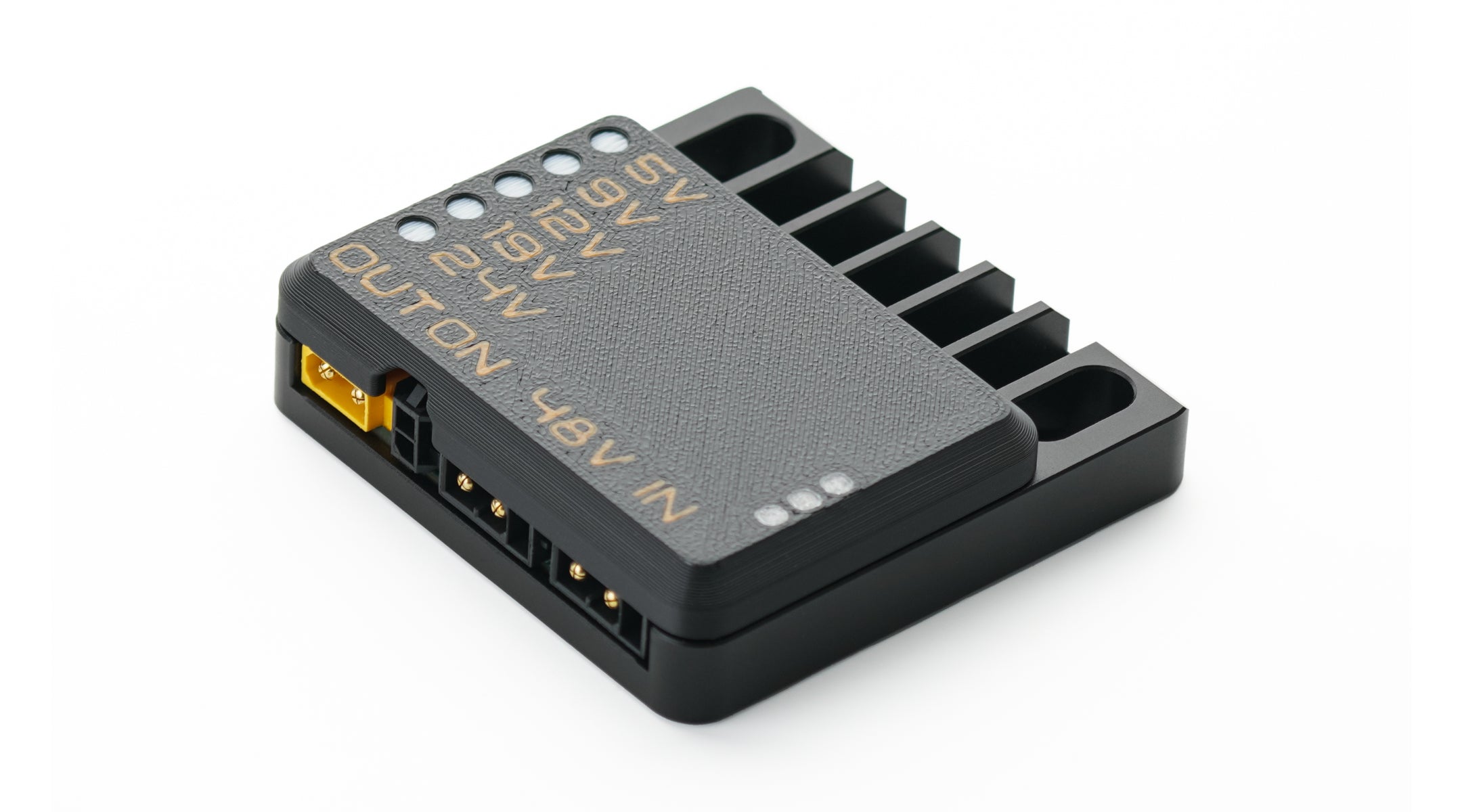

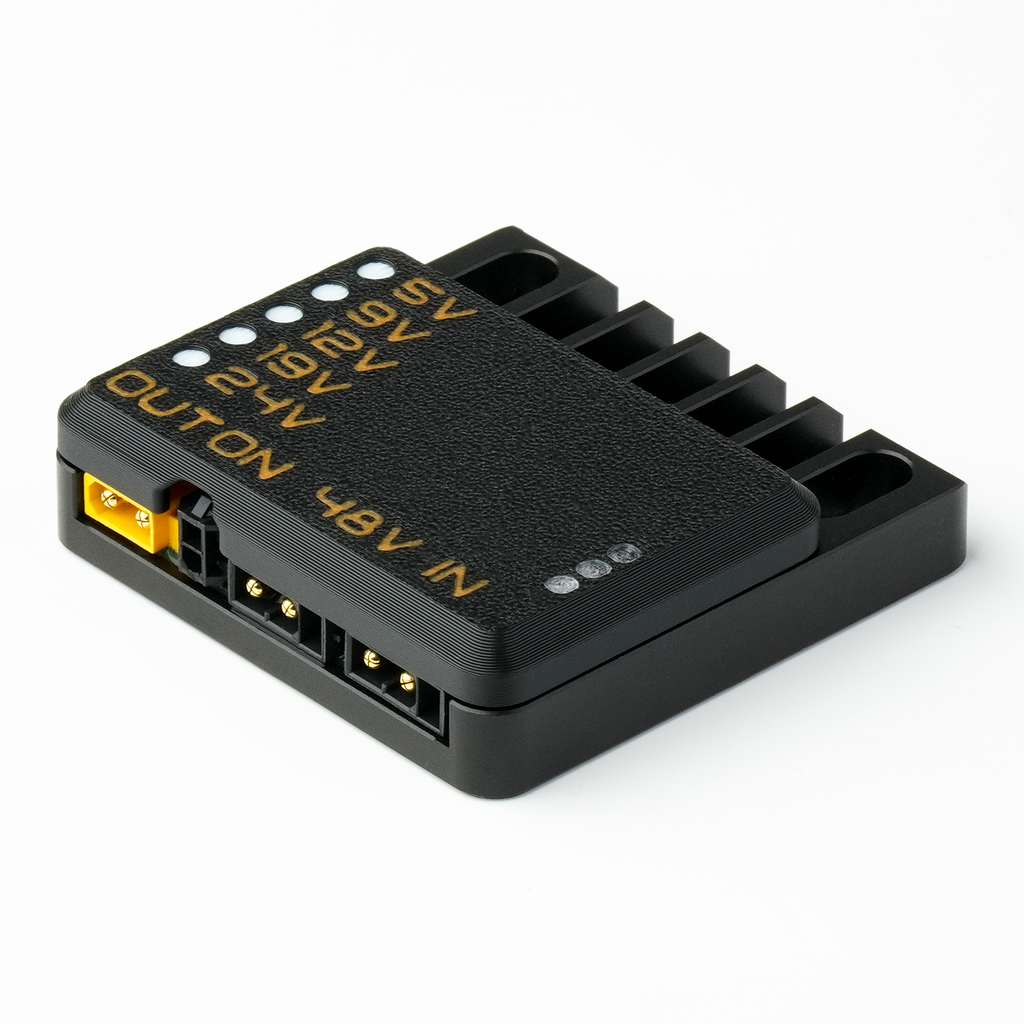

CONVERTER-MS is a compact multi-mode power converter that supports switching to output several common voltages: 5V, 12V, 19V, and 24V. The module uses an XT30 standard interface, with a compact size and stable, reliable installation. It is ideal for pairing with other devices in early-stage project development and can be easily installed on standard brackets.
CONVERTER-MS
  • CONVERTER-MS
  • CONVERTER-MS
  • CONVERTER-MS
  • CONVERTER-MS

SUPPORTS EXTERNAL SWITCHES
Can be mounted on a standard bus, enabling switch control through external devices

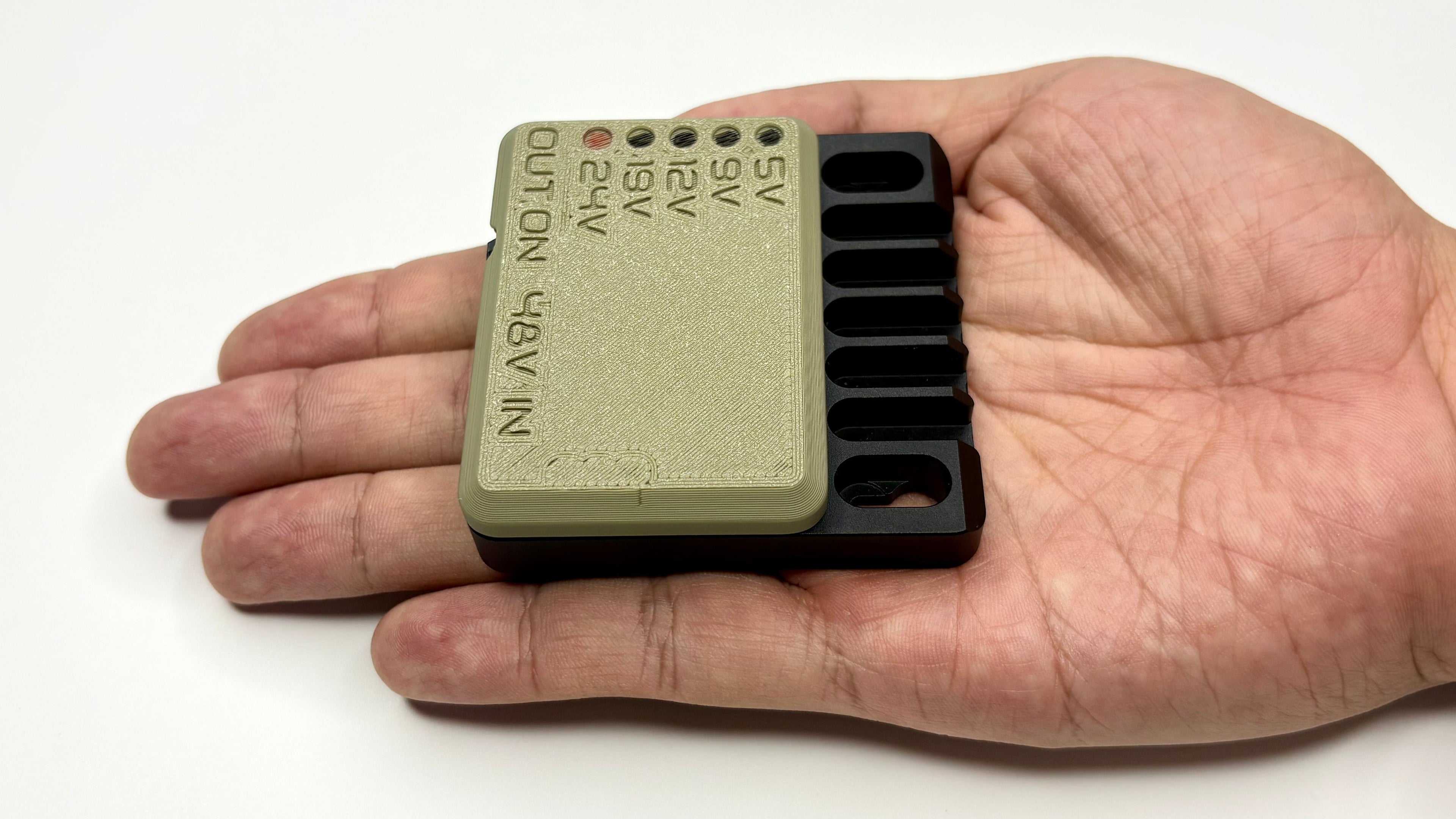

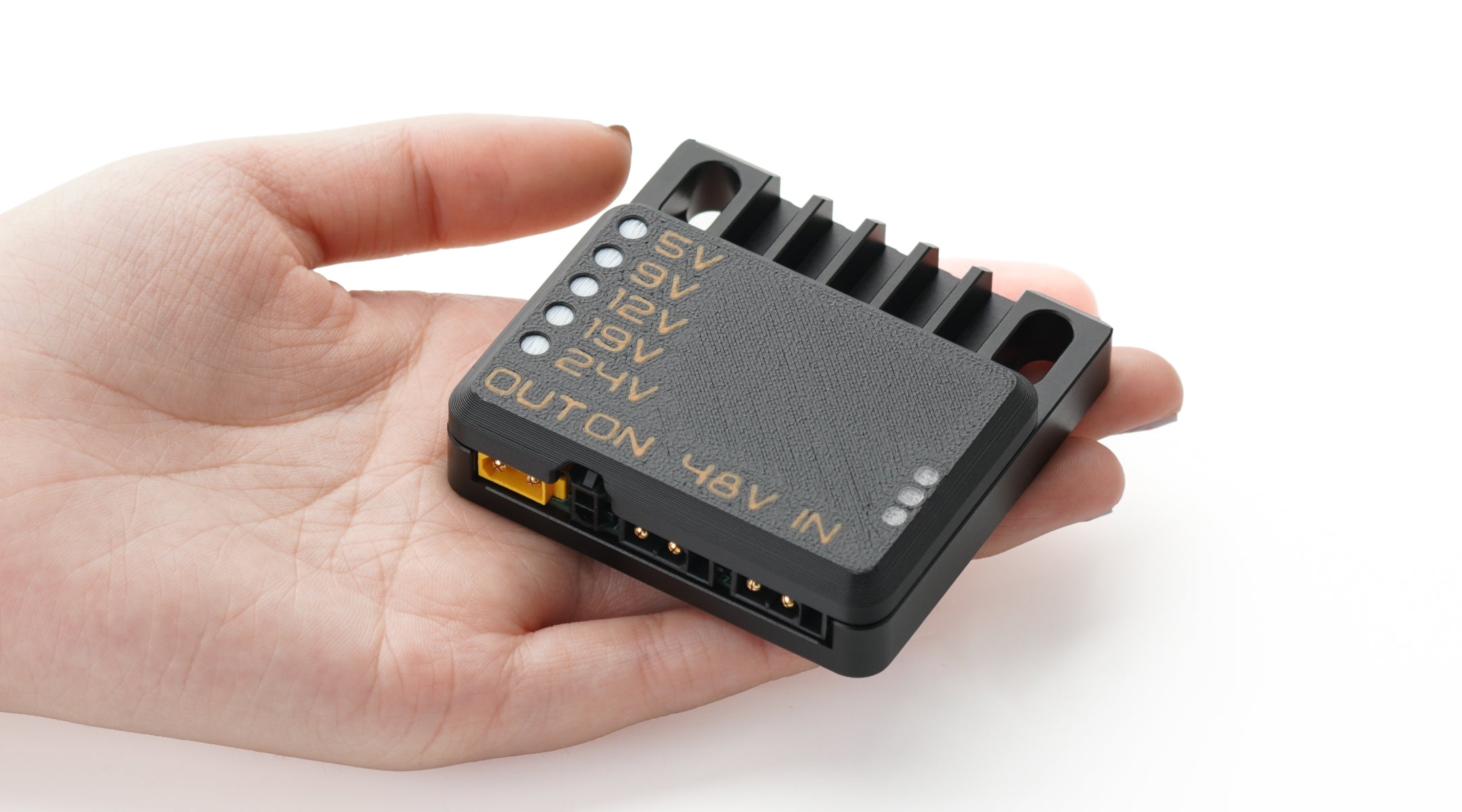

SMALL SIZE

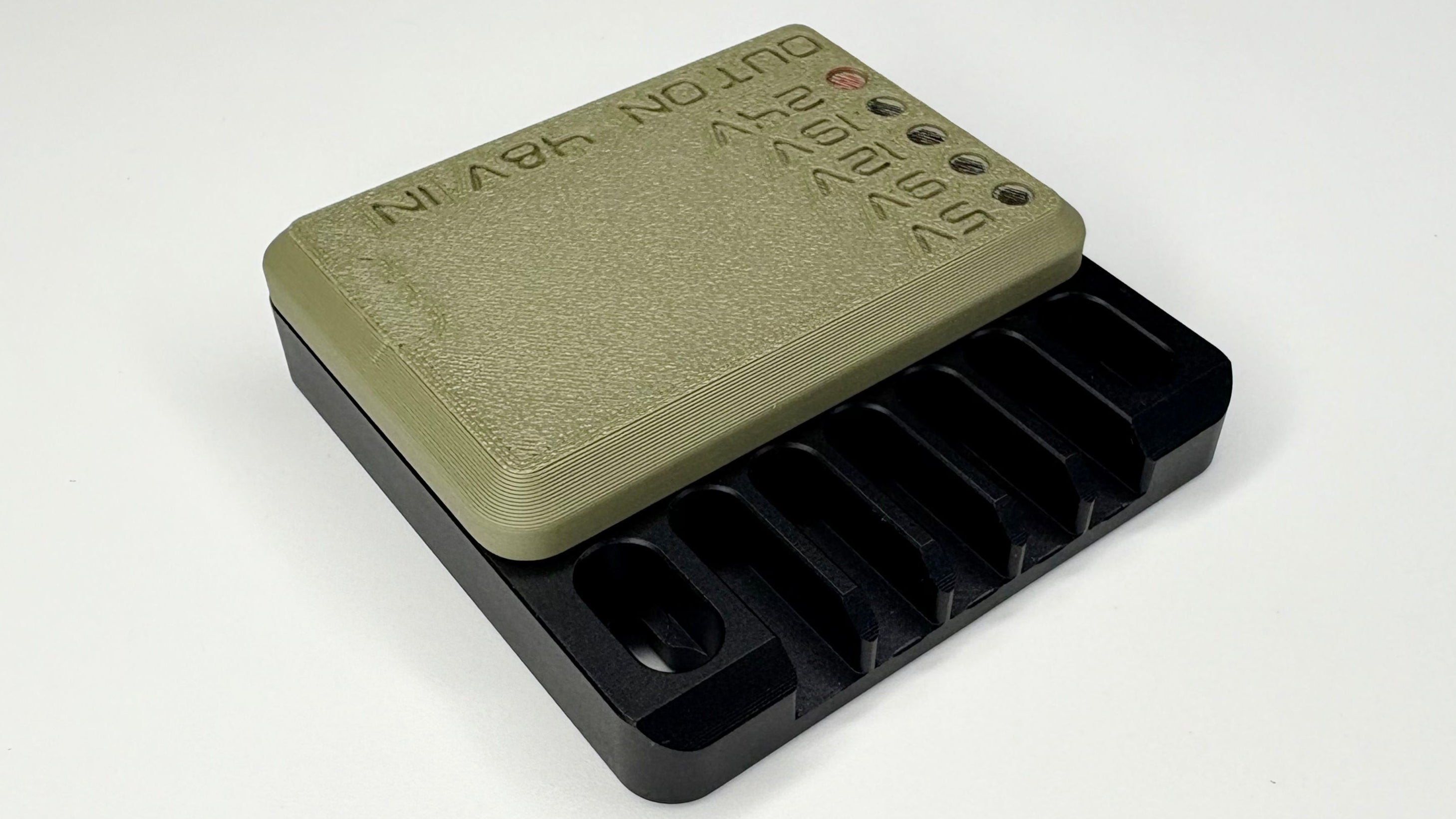

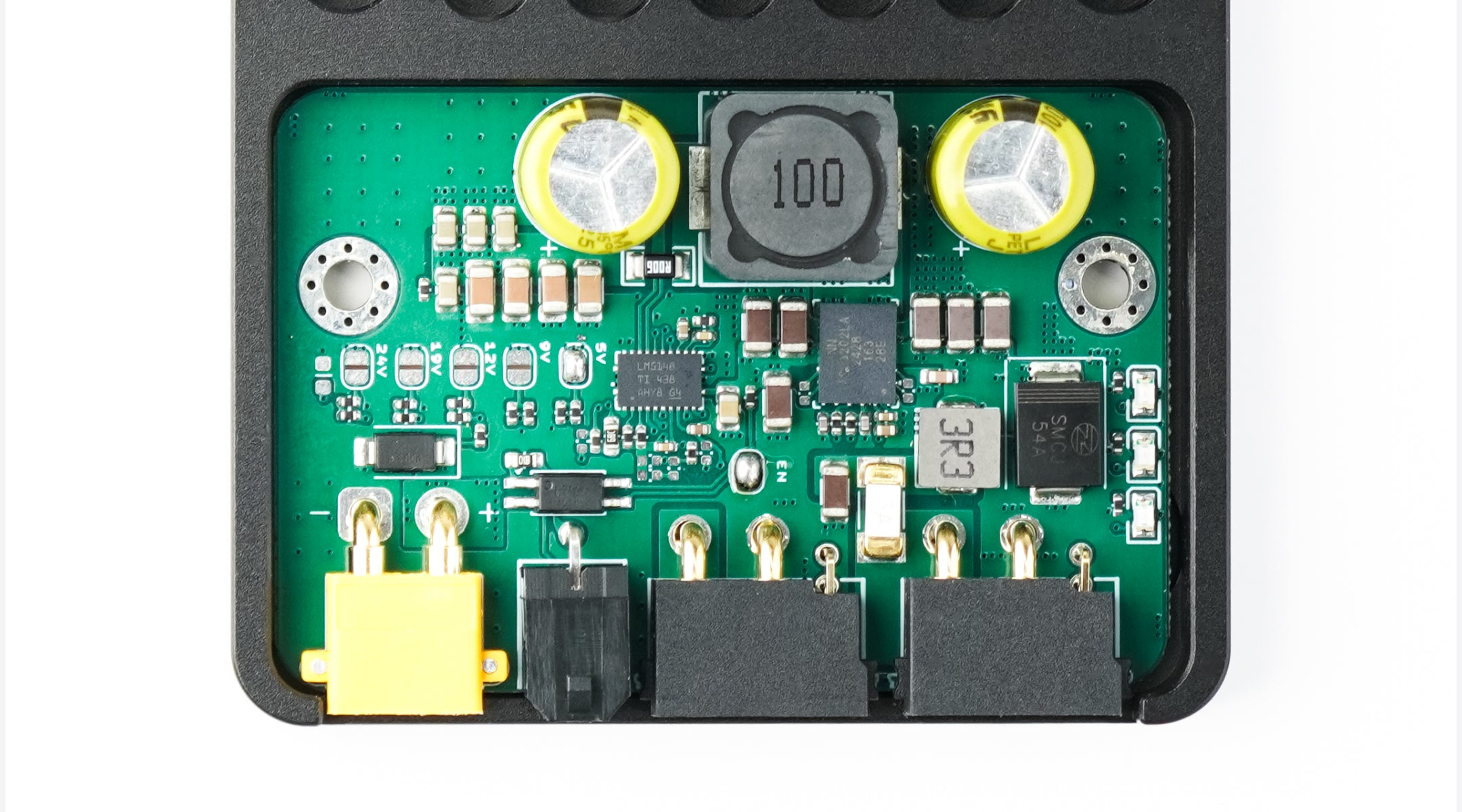

Aluminum backplane for heat dissipation, enabling quick install/remove.

SWITCHABLE OUTPUT VOLTAGE

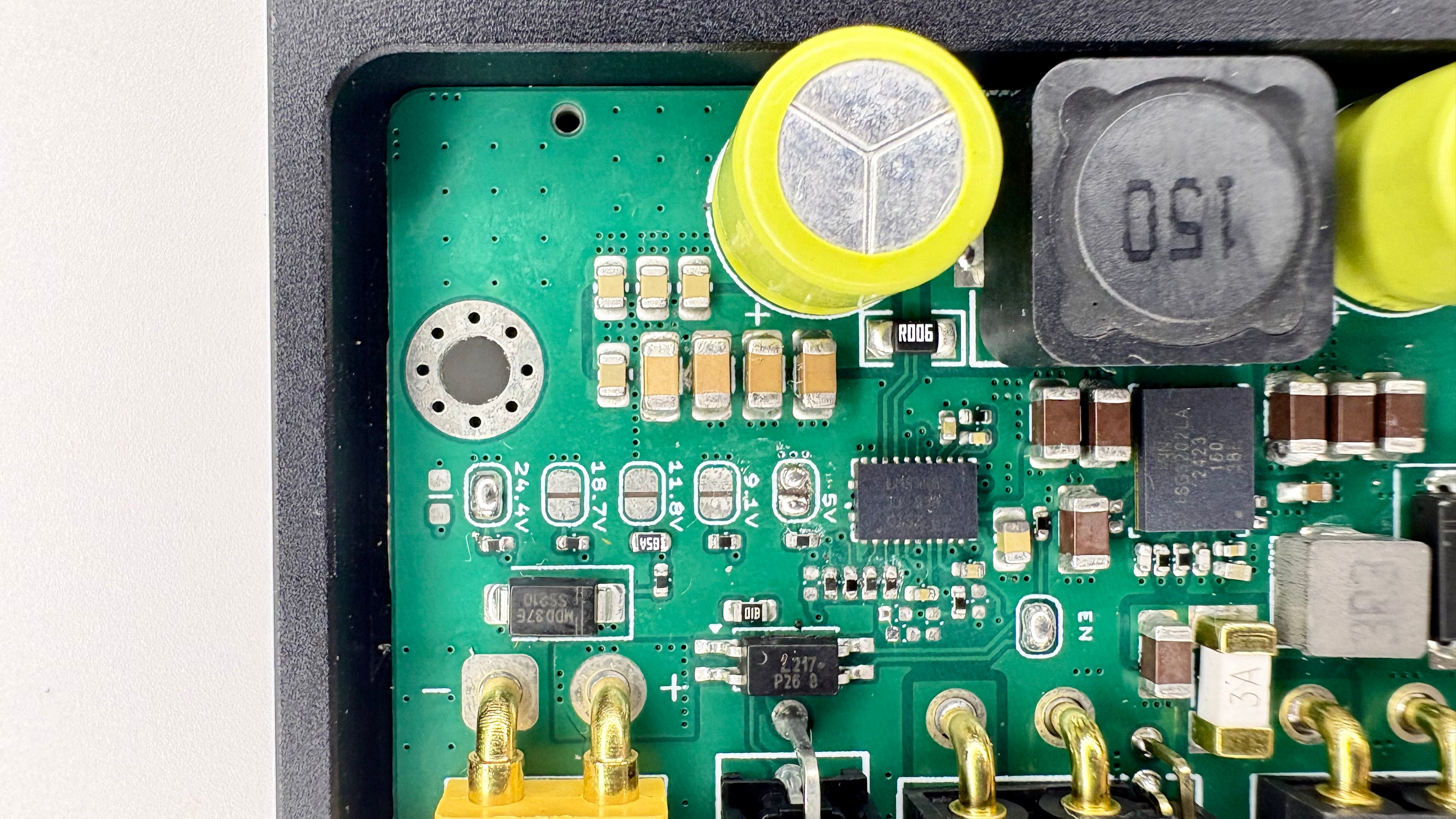

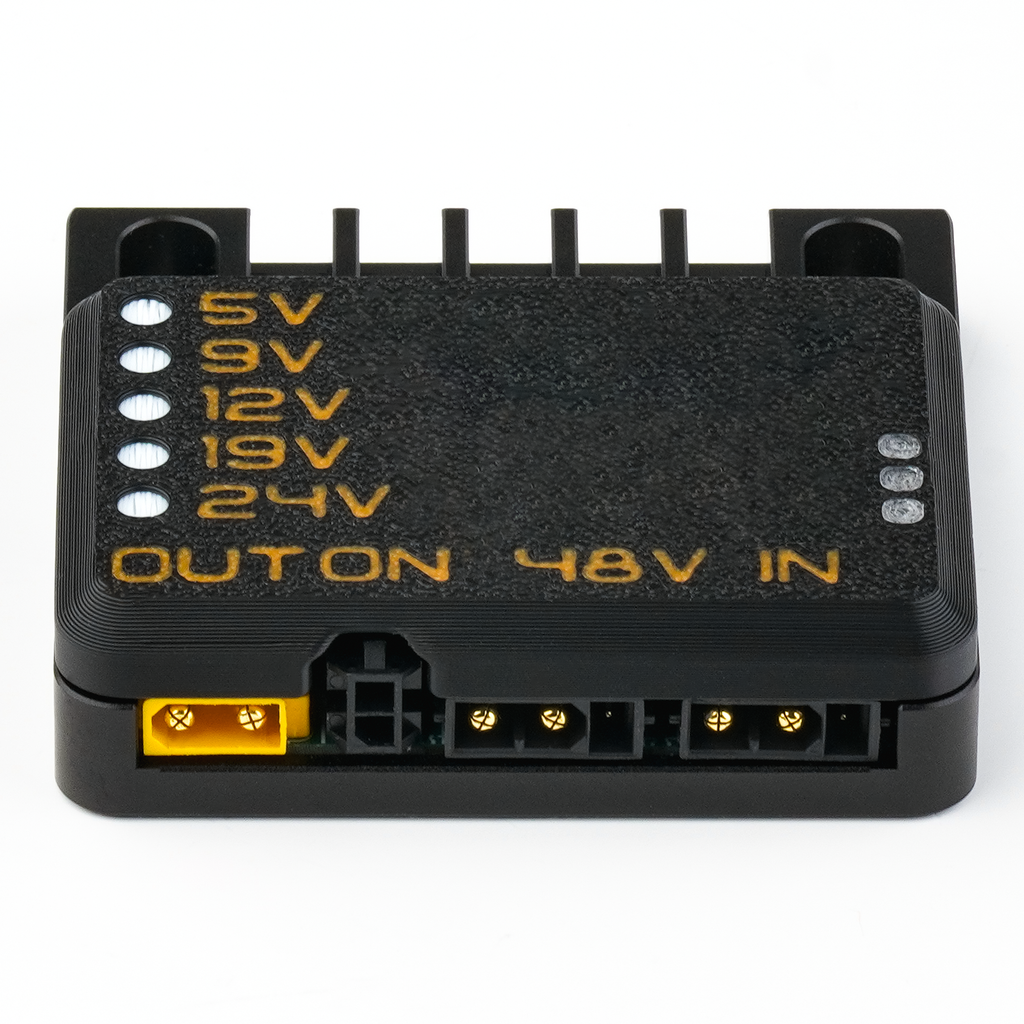

By changing internal contacts, it can be set to 5V, 9V, 12V, 19V, or 24V

Parameter

Model

Max Input Voltage

Max Total Output Power

Rated Output Voltage

Mini DC Buck

60V

100 W

5V / 12V / 19V / 24V

Rated Output Current

Input Interface

Output Interface

Operating Temperature

3 A

XT30(2+2) + MOLEX

XT30

0°C~60°C
