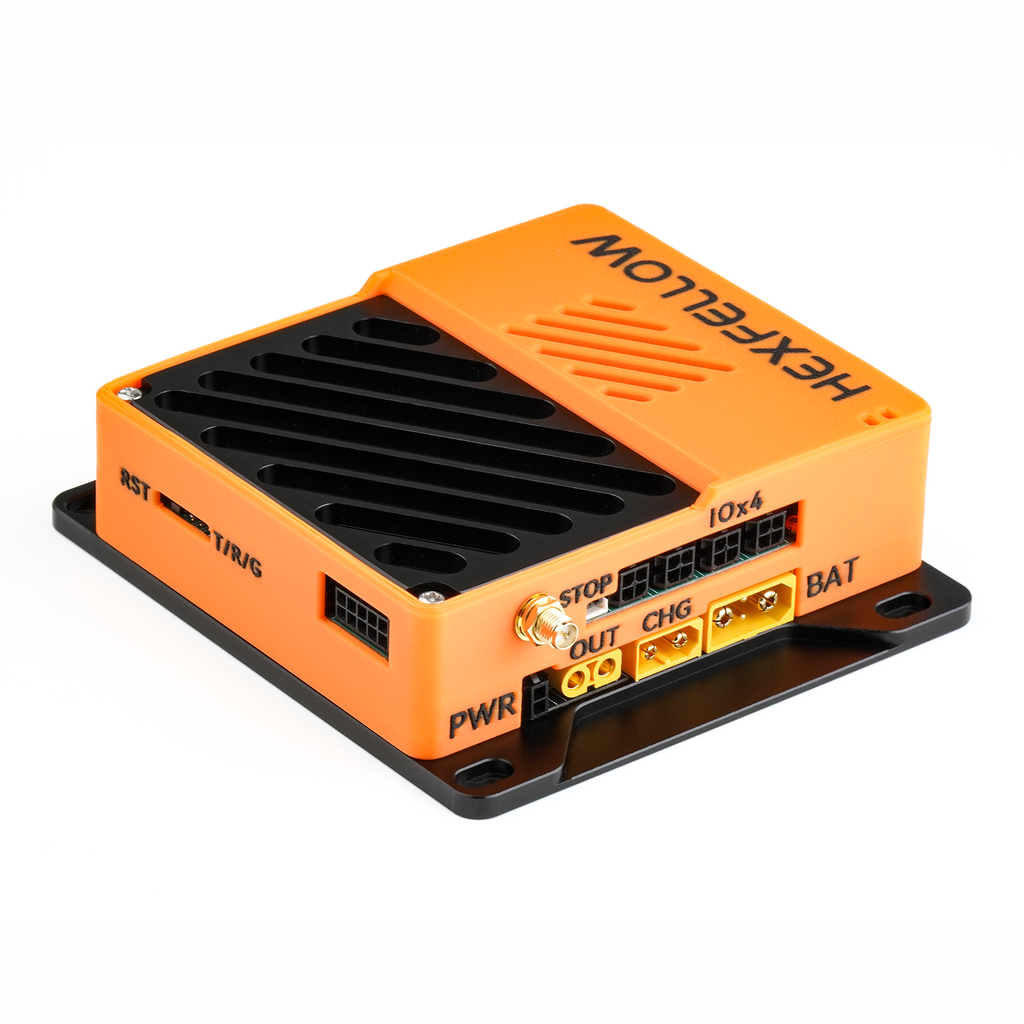

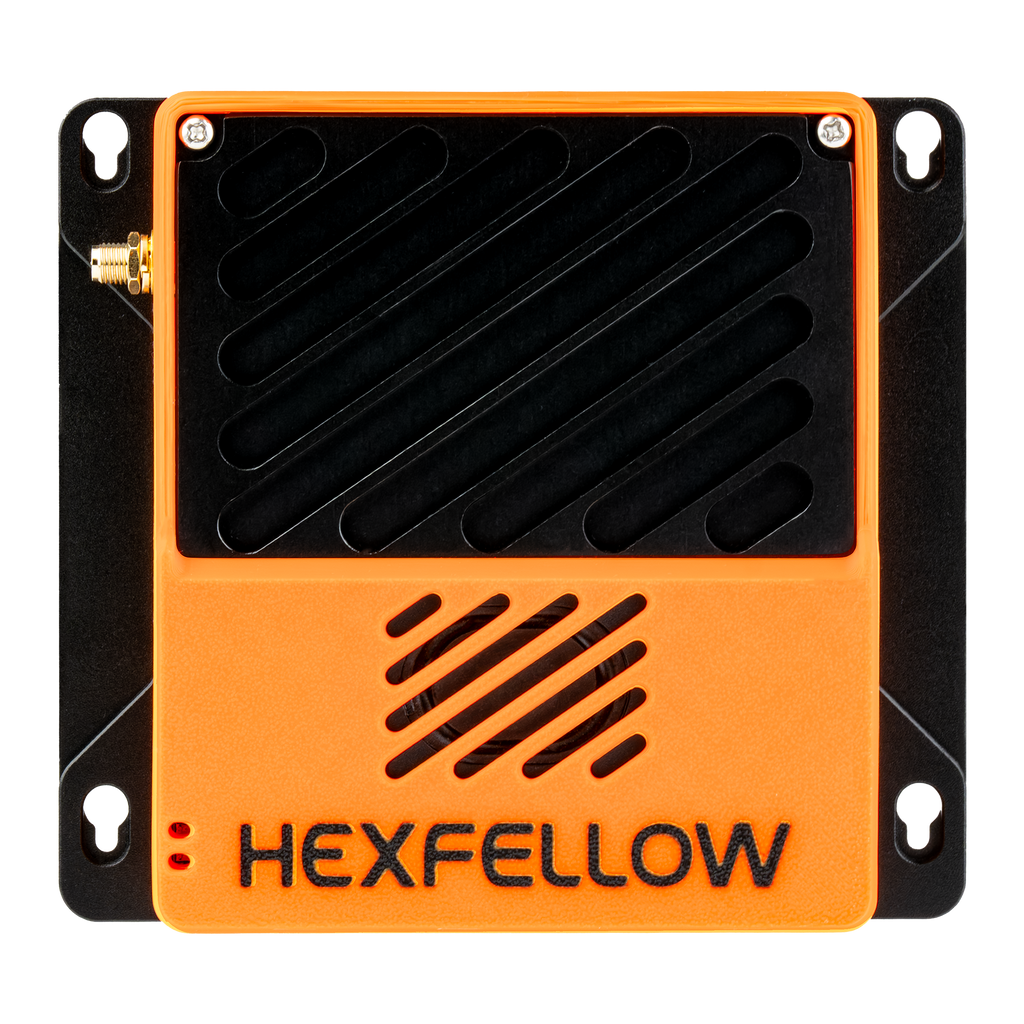

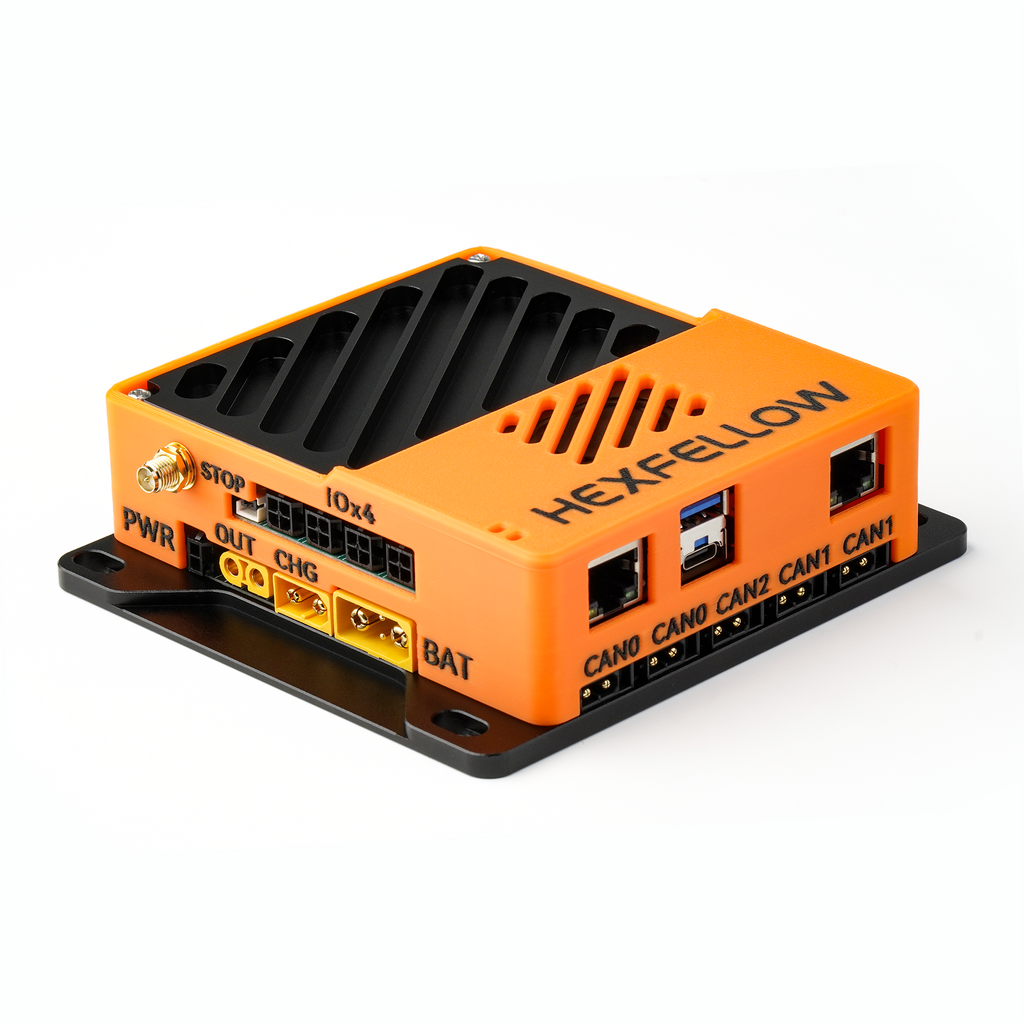

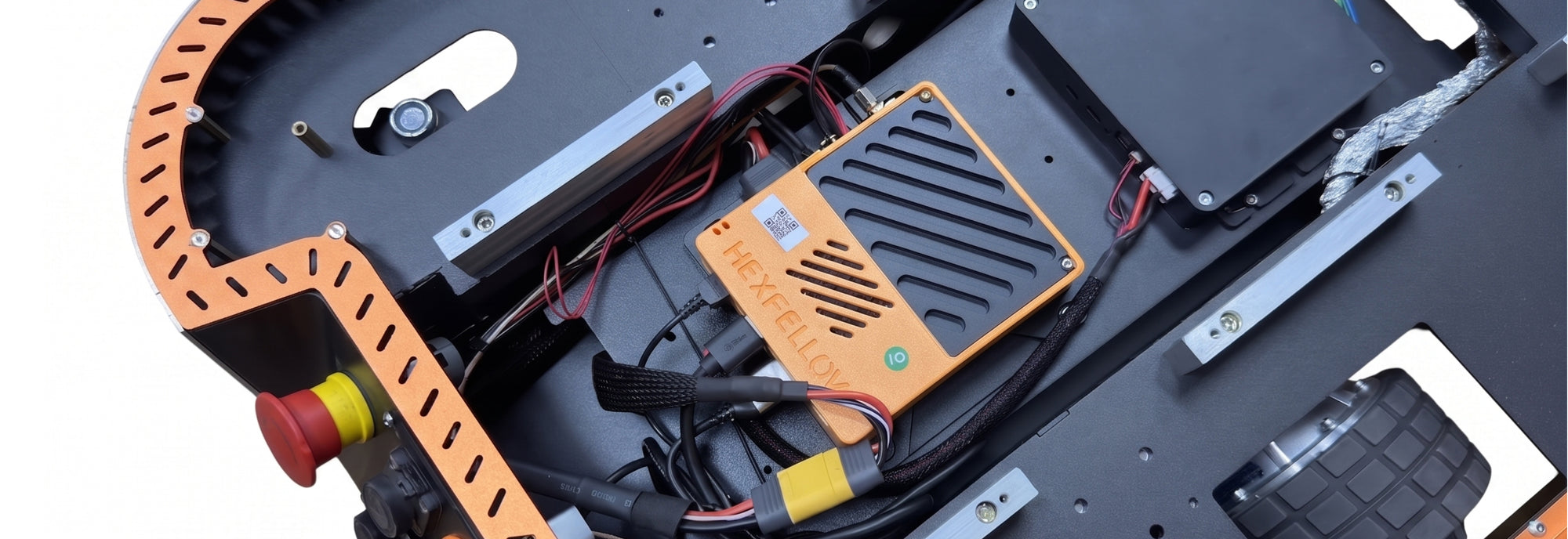

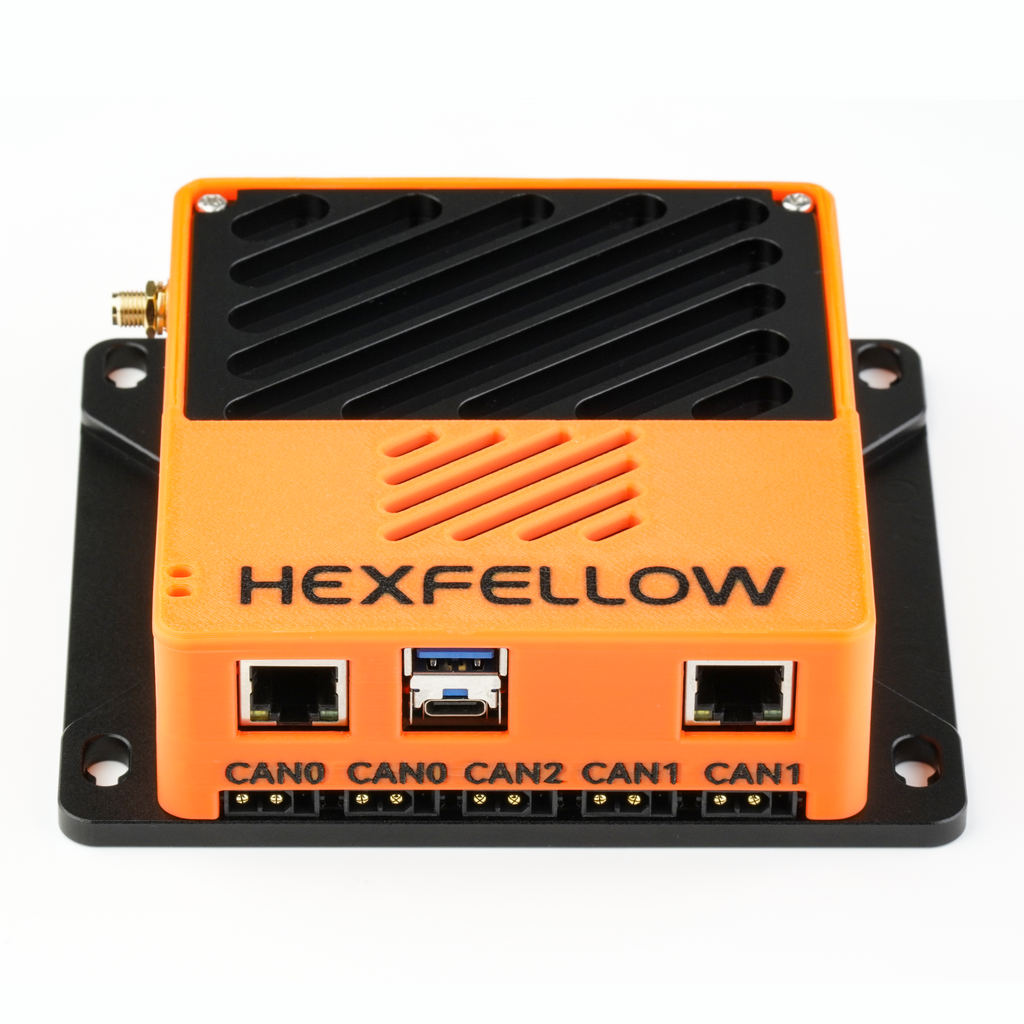

The HEXCOMPUTER P1 is an industrial-grade main computer designed for robotics and autonomous systems. Featuring 8x GMSL2 camera interfaces, 10G uplink, 4x CAN-FD, and wide 19-48V input with hardware power-cut protection, it delivers robust vision processing, real-time fieldbus communication, and high reliability in harsh environments.
Features
8x GMSL2 Camera Interface
MAX96712 deserializer, supports up to 8 simultaneous cameras over coax cable (15m distance)
10G + 4x 1G Ethernet
1x 10G uplink and 4x Gigabit ports for data aggregation, switching, or mirroring
4x CAN-FD (5 Mbps)
Four independent CAN-FD interfaces with hardware timestamping, ideal for multi-device synchronization
19-48V Wide Voltage Input
Industrial terminal block input, tolerant to automotive and battery voltage fluctuations
Hardware Power-Cut Protection
Physically cuts off power under abnormal conditions to protect data and hardware
Dual M.2 SSD Slots
2x M.2 Key M (PCIe), 128GB SSD pre-installed, supports RAID configuration
5G / WiFi Expansion
M.2 Key B (4G/5G) and Key E (WiFi/BT) slots for wireless connectivity
Wide Operating Temperature
-10°C to 60°C, suitable for outdoor and industrial applications

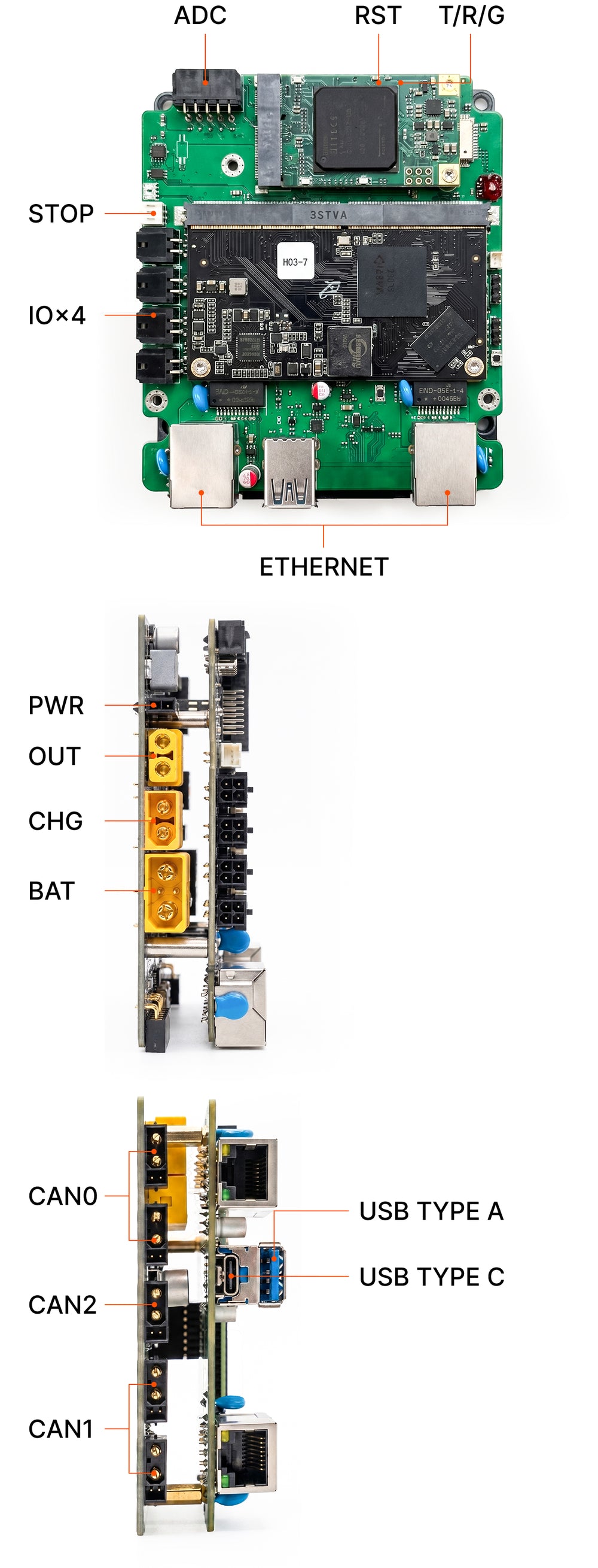

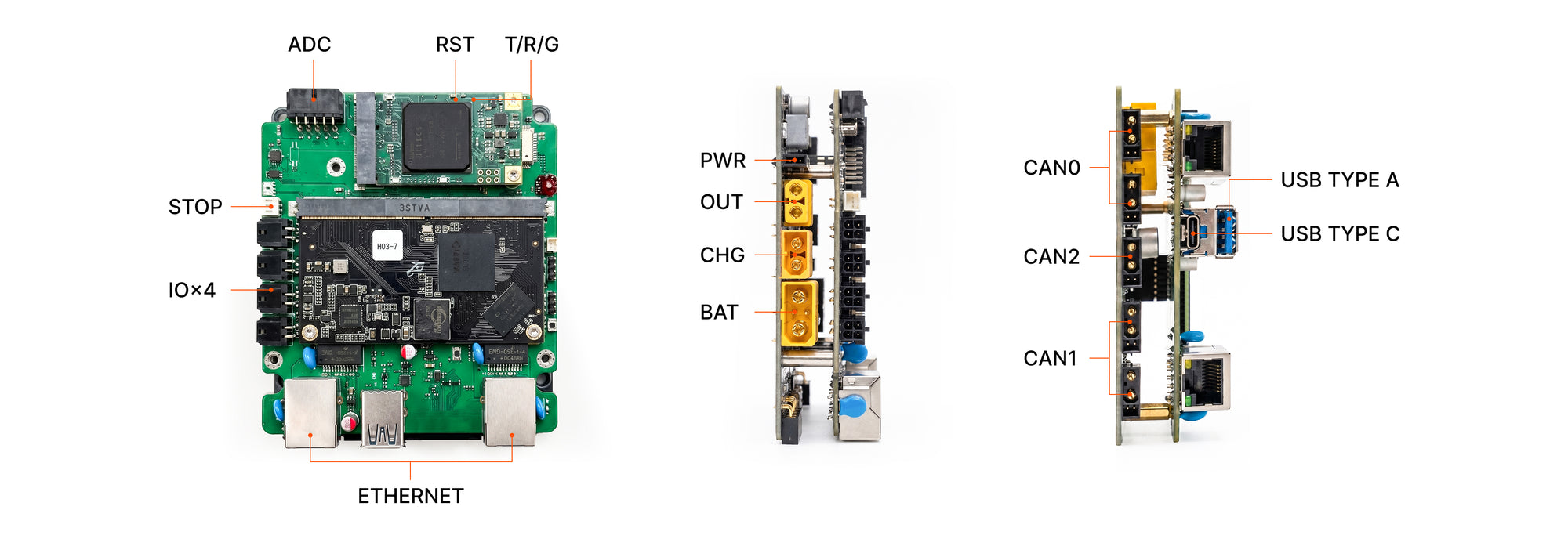

Hardware Overview
Technical Specifications
HEXCOMPUTER P1 Complete Specifications
| Core System | |
| Processor | Rockchip RK3568 (4 x Cortex-A55, Mali-G52 GPU) |
| Memory | LPDDR4X (2GB / 4GB / 8GB optional) |
| Storage | 2x M.2 Key M (PCIe), 1x 128GB SSD pre-installed, MicroSD slot |
| Network & Communication | |
| Ethernet | 1x 10G Ethernet + 4x 1G Ethernet (RJ45) |
| Wireless Expansion | 1x M.2 Key E (WiFi/BT), 1x M.2 Key B (4G/5G) |
| Industrial Interfaces | |
| GMSL2 | 8x (MAX96712 deserializer, coax cable, up to 15m) |
| CAN | 4x CAN-FD (5 Mbps, independent) |
| Serial | 2x RS-232 / RS-422 / RS-485 (software configurable) |
| Digital I/O | 4x Digital Input, 4x Digital Output |
| Other IO | SPI, I2C, I2S |
| Other Interfaces | |
| USB | 3x USB 3.0 Type-A (5Gbps), 1x USB 3.0 Type-C (Recovery), 1x USB 2.0 Type-C (Debug) |
| Display | 1x HDMI 2.1 |
| Buttons | Reset Button, Recovery Button |
| RTC | 1x RTC 2-pin header, 1x RTC battery socket |
| Fan | 1x 4-pin Fan Connector (12V PWM) |
| Power & Mechanical | |
| Power Input | DC 19V ~ 48V (2-pin terminal block) |
| Power Protection | Hardware power-cut safety, dual-channel soft-start circuit |
| Dimensions (W×D×H) | 210mm × 180mm × 87mm (with stands) |
| Weight | 2.95 kg |
| Mounting | Desk, wall-mounting |
| Environment & Warranty | |
| Operating Temperature | -10°C ~ 60°C |
| Warranty | 2 years |
Package Contents & Information

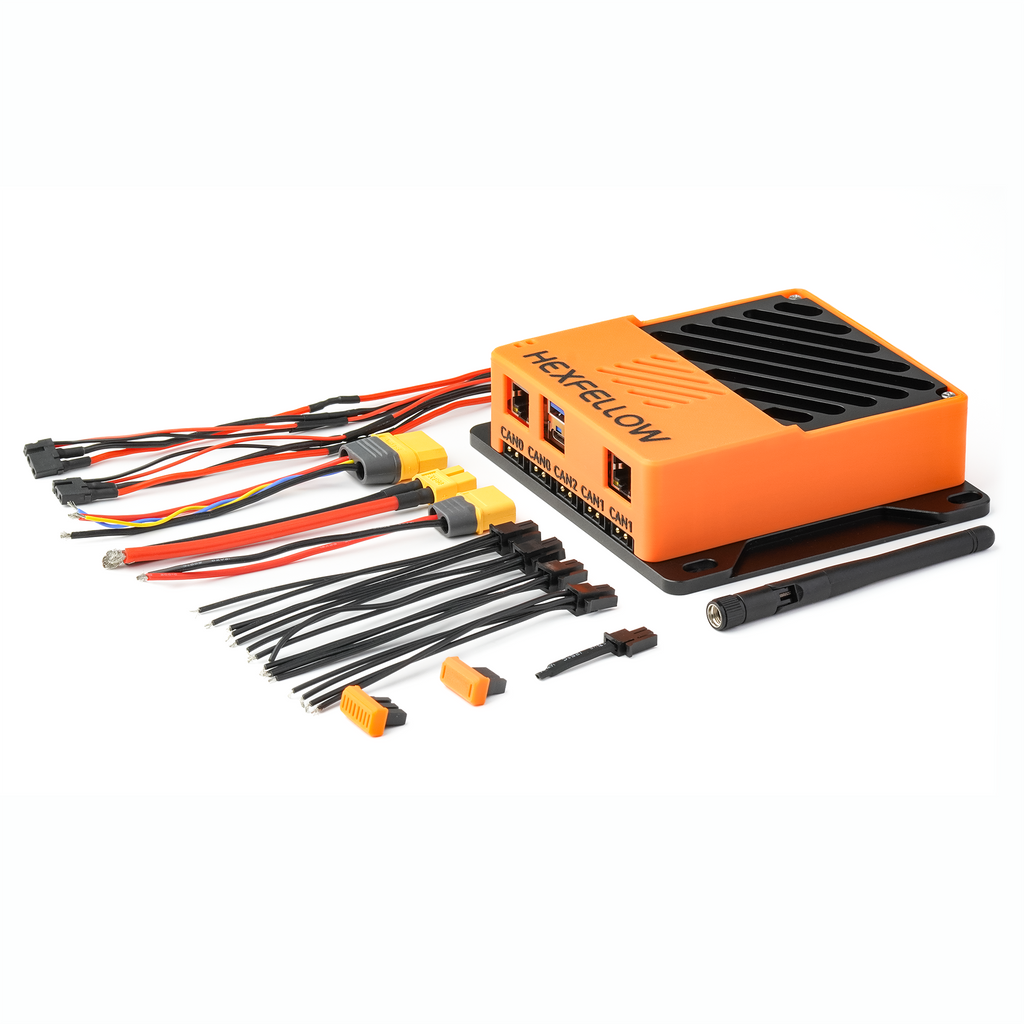

Package Contents
- HEXCOMPUTER P1 Main Unit x1
- Wi-Fi/BLE Antenna x1
- XT30U 2+2 Terminal x3
- XT30U 2+2 Wire x2
- MX3.0 2x2 Single-ended Wire x4
- MX3.0 2x1 Single-ended Wire x1
- MX3.0 2x5 Single-ended Wire x1
- XT60 Male Single-ended Wire x1
- XT60 Female Single-ended Wire x1
- XT90 Male Single-ended Wire x1
Additional Information
Weight
2.95 kg
Mounting
Desk, wall-mounting
Lead Time
Standard order: 7-14 business days
Bulk orders: please contact sales for lead time confirmation.
Software Support
Ubuntu
ROS2
Docker
CAN-FD
CANopen
C++
